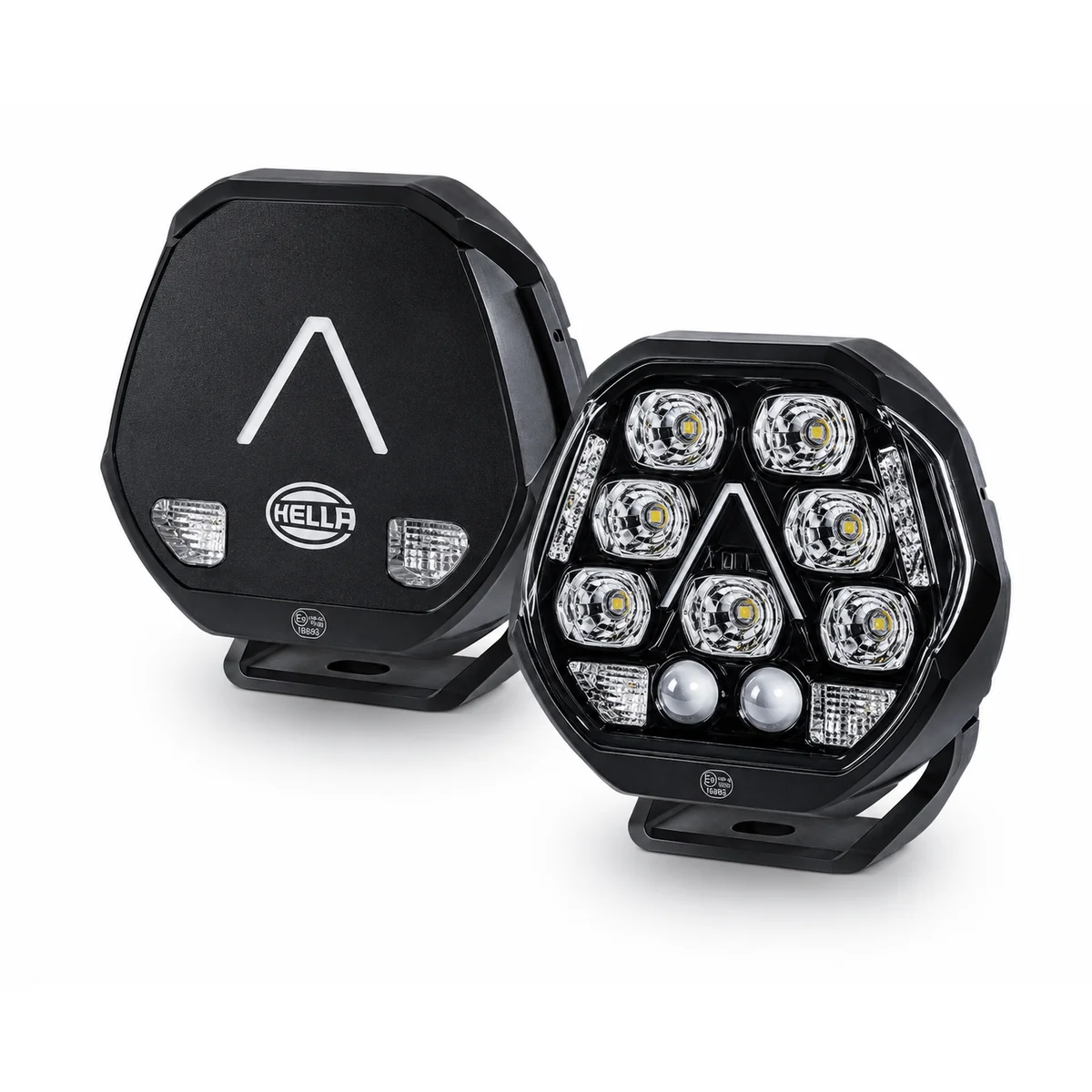

HELLA Antares 7″ LED Auxiliary Lamp Set

R8,999.00

Key Technical Specifications

Light Output: Up to 18,000 lumens per set
Colour Temperature: 5700K – Cool White
Voltage Range: 10–30V DC
High Output Mode: 13.5V: 14.1A ±10% / 28V: 6.1A ±10%
Low Output Mode: 13.5V: 11.4A ±10% / 28V: 5.5A ±10%
Position Light: 13.5V: 1.18A ±10% / 28V: 0.57A ±10%
Daytime Running Light: 13.5V: 0.36A ±10% / 28V: 0.128A ±10%
Beam Distance: 570m+ @ 1 lux (pair)
Protection: IP67 / IP69K
EMC: ECE R10 / CISPR25 Class 3
ECE Compliance: R148 (R7), R149 (R112), R87
ADR Approved: 49/00, 46/00 (Low Mode), 76/00
Protection Features: Reverse polarity and overvoltage protection
Thermal Management: Active thermal management
Vibration Resistant: Designed for demanding driving conditions
Operating Temperature: -40°C to +65°C
Housing: Rugged die-cast aluminium
Lens: UV-resistant polycarbonate
Voltage Compatibility: Suitable for 12V and 24V vehicles

Category : Hella

Description

Description

HELLA Antares 7″ LED Auxiliary Lamp Set – High-Performance Driving Lights

The HELLA Antares 7″ LED Auxiliary Lamp Set is a premium high-performance driving light system designed to deliver exceptional visibility on both on-road and off-road adventures. Developed for demanding driving conditions, the compact 7-inch Antares combines powerful LED technology, advanced thermal management and rugged construction to provide reliable illumination when you need it most
