R3,790.00
| Bulb Type: | LED |
| Chip: | 3W*40 OSRAM OSLON |
| Theoretical Output: | 120W |
| Housing & Heat Sinks: | Aluminum |
| Lens: | Strengthened PC |
| Coating: | AkzoNobel Powder |
| Sealing Material: | UV Resin |
| Side Bracket: | Forged Iron |
| Bottom Bracket: | Aluminum |
| Raw Lumens: | 15,096LM |
| Lux Rating: | 1Lux@509m |
| Color Temperature: | 5,500K |
| Reflector Distribution: | 8 Flood + 24 Spot + 8 Flood |
| Spot Beam: | 13° |
| Flood Beam: | 90° |
| Amp Draw: | 6.5A@12V |
| Expected Lifespan: | 50,000 Hours |
| Relative Light Intensity: | 78% (150°C) |
| Operating Temperature Range: | -40°C (-40°F) ~ 150°C (302°F) |
| Waterproof: | IP-68 Rating |
| Package Size: | 37 x 9.5 x 10cm |
| Gross Weight: | 1.94kg |

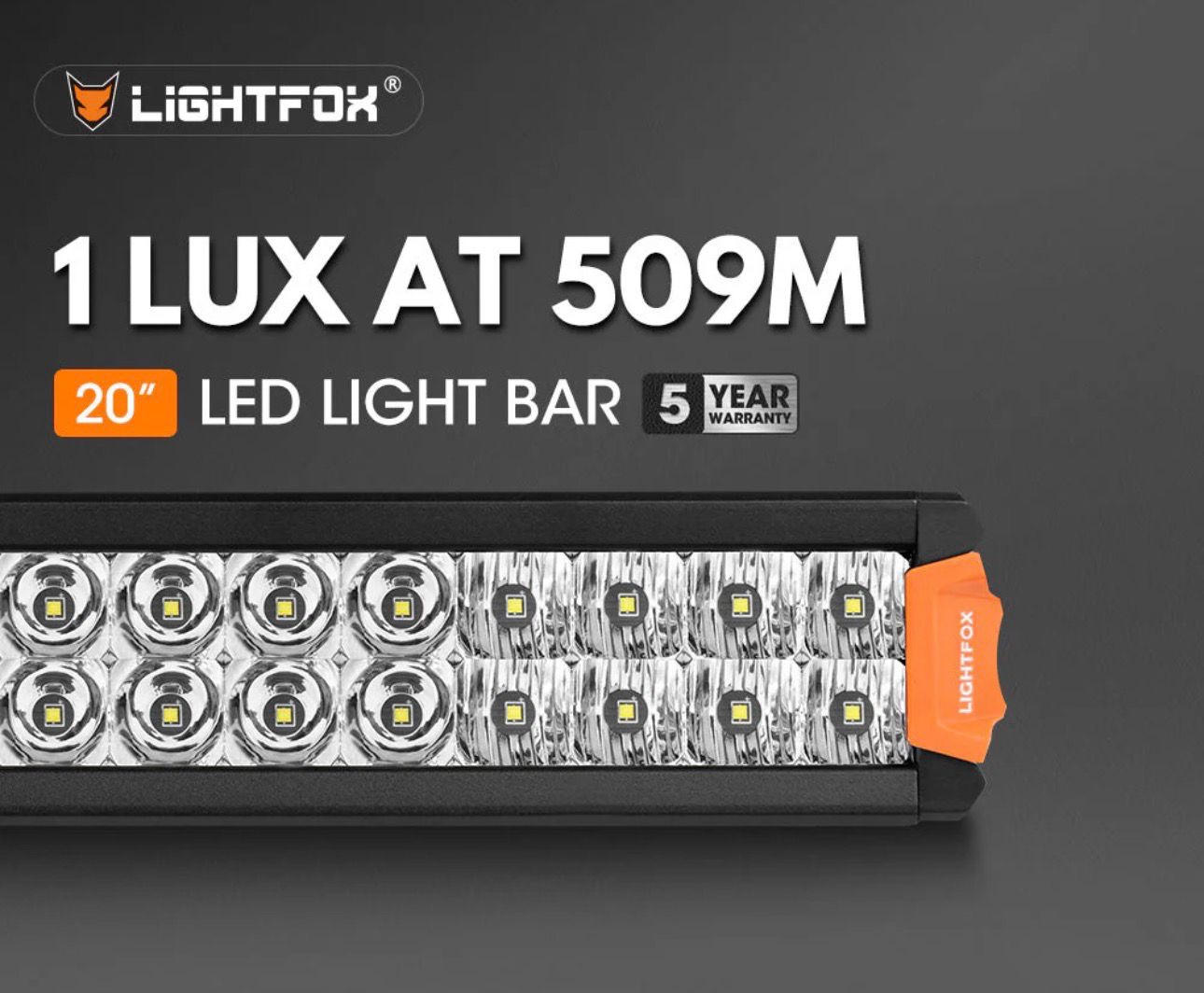

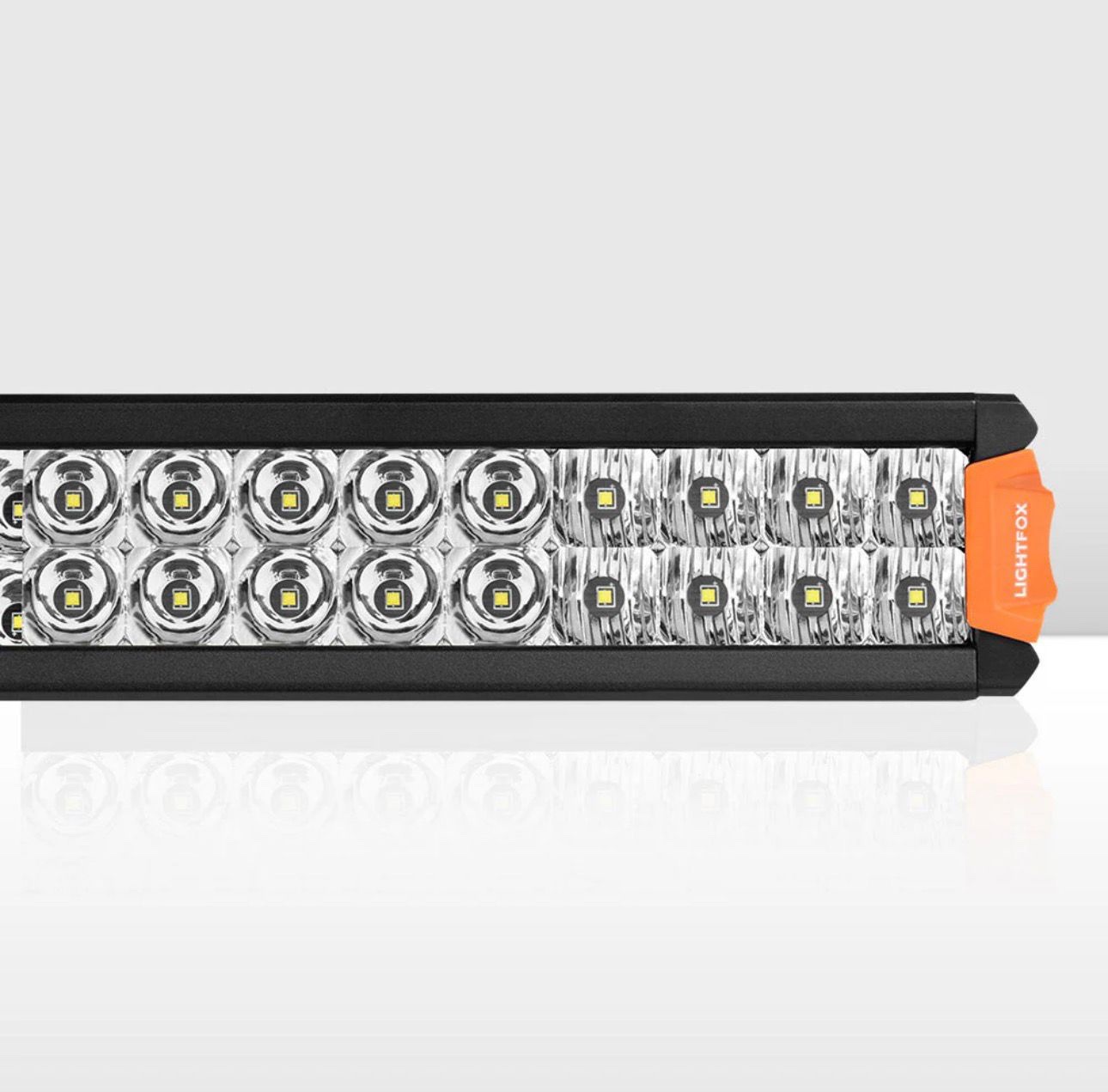

Get powerful, long-range lighting in a compact package with the Lightfox Arsenal 20″ Osram LED Light Bar. Designed for 4x4s, off-road vehicles and other demanding applications, the Arsenal combines a focused long-distance beam with wide-area lighting to improve visibility when driving or working after dark.

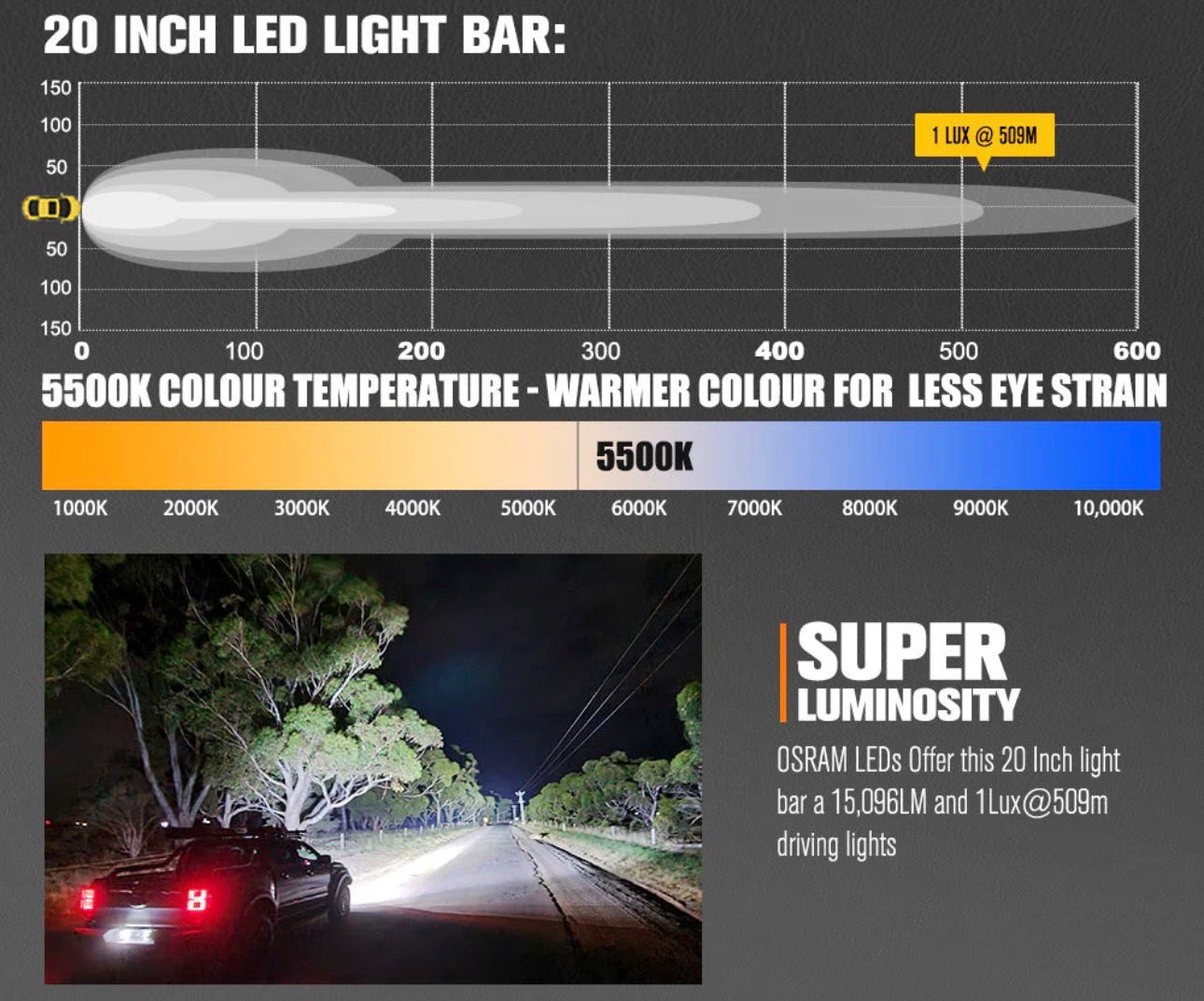

Using premium OSRAM OSLON® LEDs and Lightfox’s Vision Drive Technology, this dual-row light bar produces up to 15,096 lumens with illumination reaching 1 Lux at 509 metres.
The Arsenal combines a 13° spot beam with a 90° flood beam, giving you a useful combination of long-distance and wide-angle illumination.
Lightfox’s Vision Drive Technology uses curved and metalised reflectors to create smooth, controlled beam patterns and maximise the available light output.
The 5,500K colour temperature produces a crisp white light with a slightly warmer tone, providing clear visibility while remaining comfortable for extended night-time use.
The Arsenal is built around an aluminium housing protected with AkzoNobel powder coating, helping protect against UV exposure and corrosion.
A screwless UV-resin front frame provides an IP68 rating, helping protect the light bar against dust and water ingress. The PC lenses feature an anti-scratch coating for additional durability.
The integrated heat-sink design helps manage heat and contributes to a rated lifespan of up to 50,000 hours.
A dedicated breather helps reduce condensation inside the light bar, while the built-in circuit board provides protection against flashing and reverse polarity.
The Arsenal 20″ is compact enough for a variety of mounting locations and is particularly suited to 4×4 nudge bars, bull bars and roof racks.
Dual mounting options provide additional flexibility when positioning the light bar on your vehicle.
The forged iron mounting brackets provide a strong and secure mounting solution for demanding off-road environments.
| Weight | 1.94 kg |
|---|---|
| Dimensions | 37 × 9.5 × 10 cm |
