Description

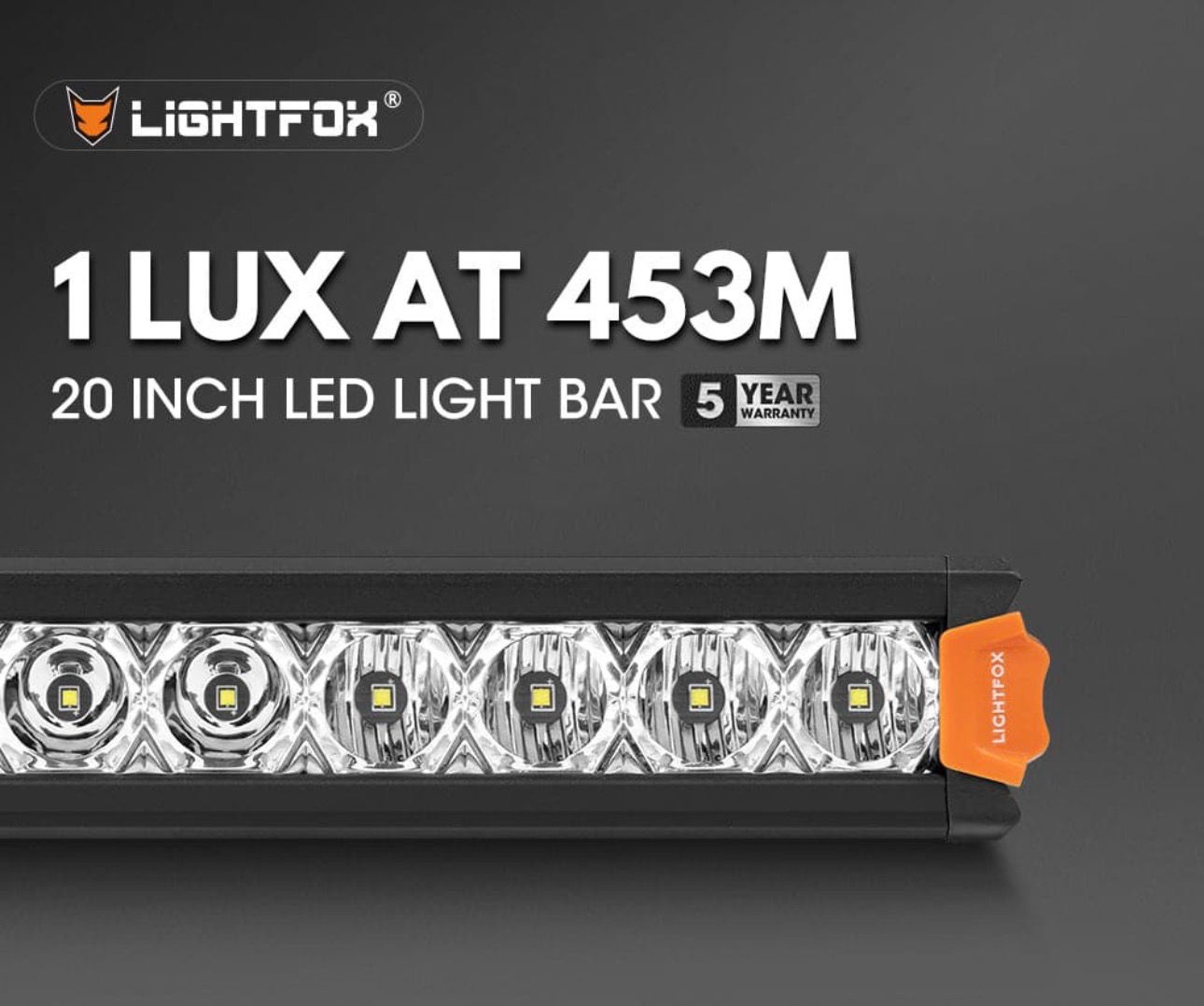

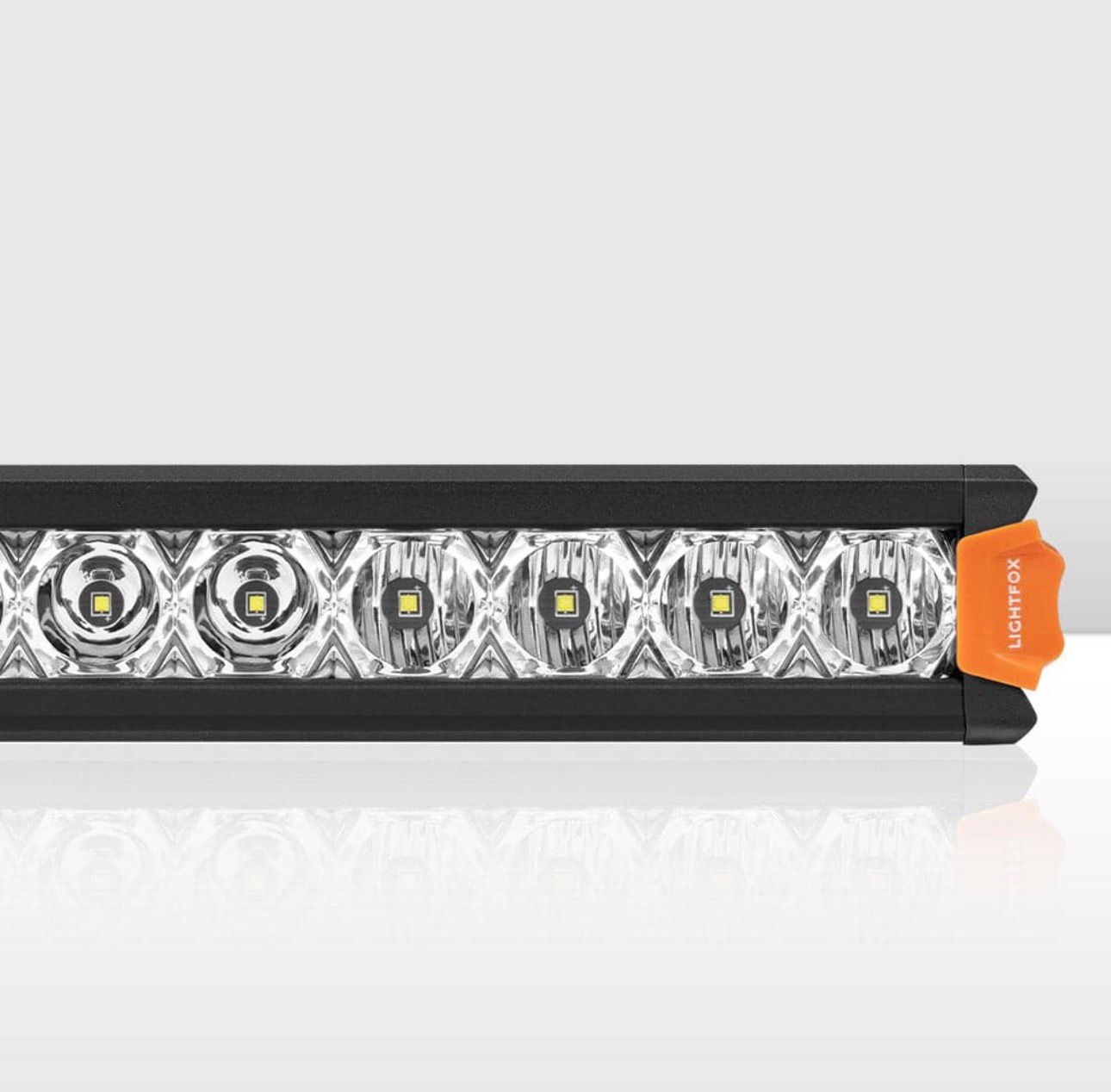

The Lightfox Vega Series 20inch Osram LED Light Bar is engineered for drivers who demand exceptional visibility, durability, and performance in a compact package. Designed with advanced Vision Drive Technology, this premium single-row LED light bar combines a focused 13° spot beam with a wide 60° flood beam to deliver smooth, balanced illumination and outstanding visibility across a variety of terrains and driving conditions.

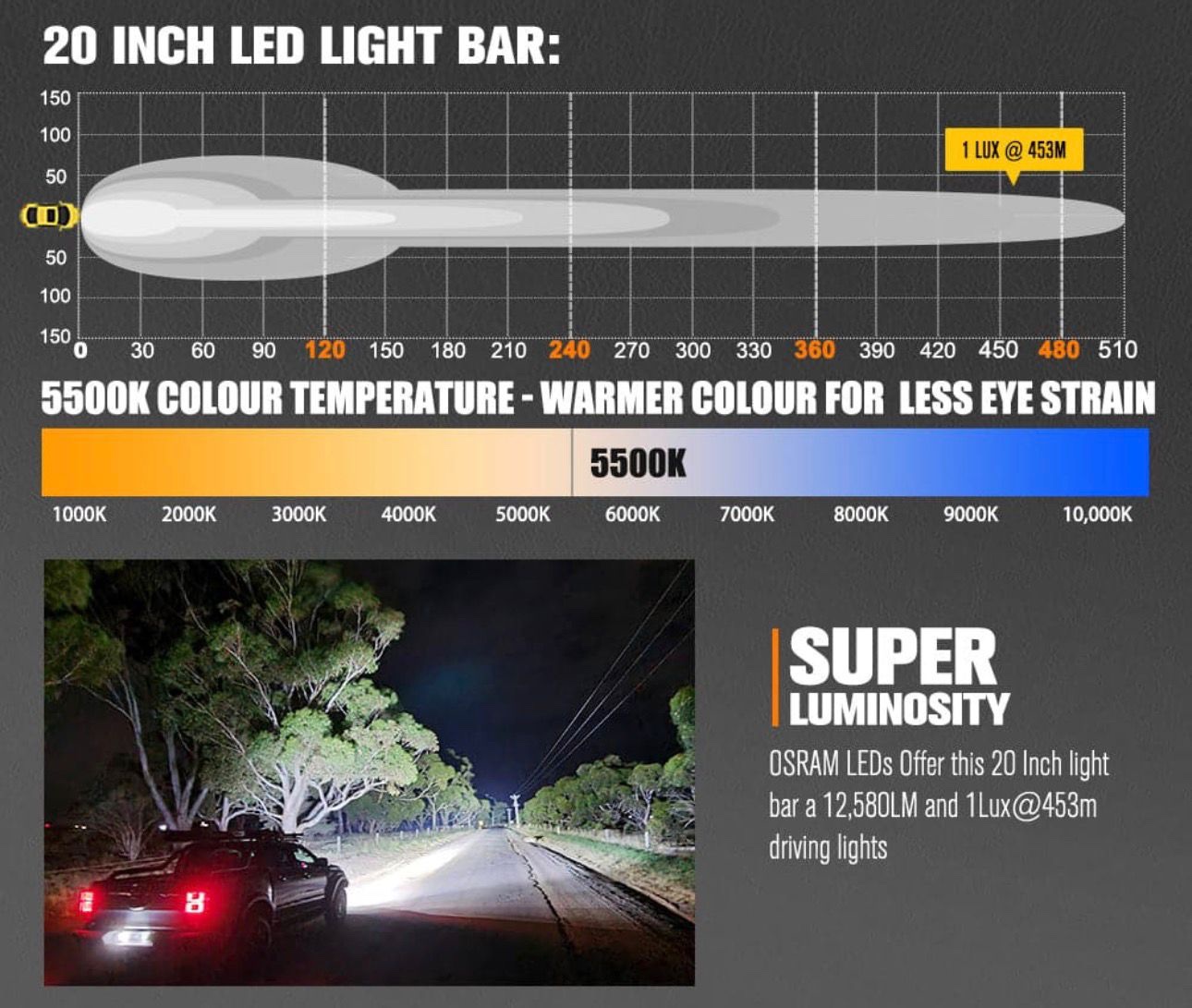

Powered by premium OSRAM OSLON®️ LEDs, the Vega Series produces an impressive 12,580 lumens and achieves 1Lux at 453 metres, providing excellent long-range visibility for off-road adventures, overlanding, recovery work, and night driving. The 5,500K colour temperature creates a crisp white light that is slightly warmer and easier on the eyes, helping to reduce fatigue during extended periods behind the wheel.

Built to withstand harsh environments, the durable aluminium housing is protected by an AkzoNobel powder-coated finish that resists UV exposure, corrosion, and weather damage. A strengthened polycarbonate lens with anti-scratch properties ensures long-lasting clarity, while the screwless UV resin-sealed construction achieves an IP68 waterproof and dustproof rating for dependable performance in rain, mud, dust, and challenging off-road conditions.

Its compact design and dual mounting options make it ideal for installations where space is limited, including roof racks, bull bars, bumpers, and other custom applications. To complete the look, interchangeable colour caps in Yellow, Orange, Grey, Black, and Red allow you to personalise your setup and stand out on any adventure.

Key Features

* Vision Drive Technology combines curved and metallised reflectors for smooth, efficient beam performance.

* Single-row design integrates a 13° spot beam and 60° flood beam for excellent distance and wide-area illumination.

* Powerful 12,580-lumen output provides reliable visibility in demanding environments.

* Long-range beam reaches 453 metres at 1Lux for enhanced forward vision.

* Premium OSRAM OSLON®️ LEDs deliver exceptional brightness, efficiency, and longevity.

* Crisp 5,500K colour temperature reduces eye strain while maintaining excellent visibility.

* Durable aluminium housing with AkzoNobel powder coating resists corrosion and UV damage.

* Strengthened polycarbonate lens provides outstanding impact and scratch resistance.

* IP68-rated waterproof and dustproof construction ensures reliable all-weather performance.

* Integrated breather system reduces condensation while advanced circuitry protects against flickering and reverse polarity.

* Side and bottom mounting brackets offer versatile installation options.

* Includes interchangeable colour caps for a personalised appearance.

SPECIFICATIONS

* Bulb Type: LED

* Chip: 5W × 20 OSRAM OSLON

* Theoretical Output: 100W

* Housing & Heat Sinks: Aluminium

* Lens: Strengthened PC

* Coating: AkzoNobel Powder Coating

* Sealing Material: UV Resin

* Side Bracket: Forged Iron

* Bottom Bracket: Aluminium

* Raw Lumens: 12,580LM

* Lux Rating: 1Lux @ 453m

* Colour Temperature: 5,500K

* Reflector Distribution: 4 Flood + 12 Spot + 4 Flood

* Spot Beam Angle: 13°

* Flood Beam Angle: 60°

* Amp Draw: 6.2A @ 12V

* Expected Lifespan: 50,000 Hours

* Relative Light Intensity: 78% (150°C)

* Operating Temperature Range: -40°C to 150°C

* Waterproof Rating: IP68

Package Size

* 62 × 7.5 × 7.5cm

Gross Weight

* 1.3kg

Package Includes

* 1 × Lightfox 20inch LED Single Row Light Bar

* 2 × Side Mounts

* 2 × Bottom Mounts

* 1 × Set of Mounting Hardware

* 4 × Pairs of Colour Caps

* 1 × User Manual

Warranty

5-Year Warranty
